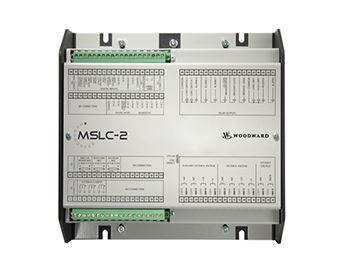

MSLC-2-1 Master Synchronizer/Load Control, 1A 8440-1977

MSLC-2-1 Master Synchronizer/Load Control, 1A

Woodward’s MSLC-2™ functions with the DSLC-2™ control to provide synchronization and load control across Utility and Intertie breakers. The MSLC-2/DSLC-2 combination operates over an Ethernet communication network to control simple or complex generator system applications. This combination, 32 DSLC-2’s and 16 MSLC-2’s, provide multiple unit, multiple segment, utility and intertie power management for complex power systems. Controls plant wide import/export levels while always providing bump-less load transfers with utility.

Detaylar
DSLC-2-1 Digital Synchronizer/Load Control, 1A 8440-1978

DSLC-2-1 Digital Synchronizer/Load Control, 1A

The Woodward DSLC-2™ (Digital Synchronizer and Load Control) is a microprocessor-based synchronizer and load control designed for use on three-phase AC generators. The DSLC-2 combines synchronizer, load sensor, load control, dead bus closing system, VAR, power factor and process control, all in one powerful package.

Detaylar
MSLC-2-5 Master Synchronizer/Load Control, 5A 8440-1877

MSLC-2-5 Master Synchronizer/Load Control, 5A

Woodward’s MSLC-2™ functions with the DSLC-2™ control to provide synchronization and load control across Utility and Intertie breakers. The MSLC-2/DSLC-2 combination operates over an Ethernet communication network to control simple or complex generator system applications. This combination, 32 DSLC-2’s and 16 MSLC-2’s, provide multiple unit, multiple segment, utility and intertie power management for complex power systems. Controls plant wide import/export levels while always providing bump-less load transfers with utility.

Detaylar
DSLC-2-5 Digital Synchronizer/Load Control, 5A 8440-1878

DSLC-2-5 Digital Synchronizer/Load Control, 5A

The Woodward DSLC-2™ (Digital Synchronizer and Load Control) is a microprocessor-based synchronizer and load control designed for use on three-phase AC generators. The DSLC-2 combines synchronizer, load sensor, load control, dead bus closing system, VAR, power factor and process control, all in one powerful package. For pricing and availability, sign in to your Woodward account. *Note: For shipments outside the USA, please contact your Woodward Customer Service Representative, or an authorized Woodward Business Partner serving your area.

Detaylar
SPM-D2-1145B/LSXR Synchronizer and Load-Sharing 400 Vac, 5A 8440-2169

SPM-D2-1145B/LSXR Synchronizer and Load-Sharing 400 Vac, 5A

The SPM-D11/LSXR Series are microprocessor-based synchronizers designed for use on one- or three-phase AC generators equipped with Woodward or other compatible speed controls and automatic voltage regulators. The SPM-D11 Series synchronizers provides 1-phase / 2-wire voltage measurement with analog or discrete biasing signals, analog active and reactive load sharing lines and generator protection. It combines synchronizing for one circuit breaker, load and power factor control, or isochronous load sharing and generator protection.

Detaylar
SPM-D2-1115B/LSXR Synchronizer and Load-Sharing 100 Vac, 5A 8440-2165

SPM-D2-1115B/LSXR Synchronizer and Load-Sharing 100 Vac, 5A

The SPM-D11/LSXR Series are microprocessor-based synchronizers designed for use on one- or three-phase AC generators equipped with Woodward or other compatible speed controls and automatic voltage regulators. The SPM-D11 Series synchronizers provides 1-phase / 2-wire voltage measurement with analog or discrete biasing signals, analog active and reactive load sharing lines and generator protection. It combines synchronizing for one circuit breaker, load and power factor control, or isochronous load sharing and generator protection.

Detaylar
