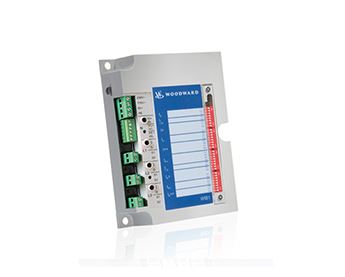

SEG WI LINE CT powered protection relays

All relays from this Woodward's WI Line are self-powered time overcurrent relays, which means they take their energy from the current transformers. Since they do not require auxilliary power, the WI Line relays are well suited for use in self-sustaining transfer and distribution stations, local grids, and ring-main-units. Tripping characteristics range from two-stage, independent (DEFT) and dependent (INV) time-overcurrent protection, up to special characteristic curves. As further options, we offer some relays with integrated earth fault protection. Woodward has also developed serial products

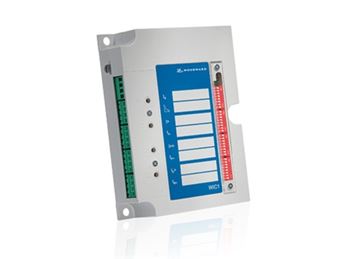

SEG WIC1 CT-Powered Protection (Harsh Env.)

Settable with PC: CT Powered Time Overcurrent and Earth Current Relay

SEG WIC1 CT-Powered Prot. (PC+Backup+Harsh Env.)

Settable with PC: CT Powered Time Overcurrent and Earth Current Relay. With Backup protection element

SEG WIC1 CT-Powered Prot. (DIP/PC+Harsh Env.)

Settable via DIP switches or PC: CT Powered Time Overcurrent and Earth Current Relay

SEG WIC1 CT-Powered Prot. (DIP/PC+Backup+Harsh)

Settable via DIP switchtes or PC: CT Powered Time Overcurrent and Earth Current Relay. With Backup protection element

SEG WIC1 CT-Powered Prot. (HEX/PC+Harsh Env.)

Settable via DIP switches or PC: CT Powered Time Overcurrent and Earth Current Relay.

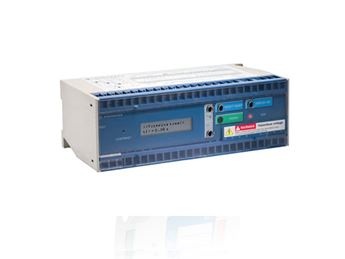

SEG WIP1 CT-Powered Protection (1A CTs)

SEG WIP1 CT-Powered Prot. (1A CTs + Dual Power)

Dual Powered Option (140 VAC or 200 VDC)

SEG WIP1 CT-Powered Prot. (1A CTs+Dual P.+RS485)

Dual Powered Option (140 VAC or 200 VDC) and RS485

SEG WIP1 CT-Powered Prot. (1A CTs+Dual P.+Modbus)

Dual Powered Option (140 VAC or 200 VDC) and Modbus (RS485)
