8440-2228

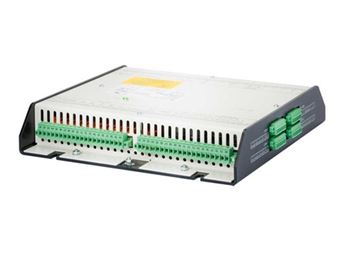

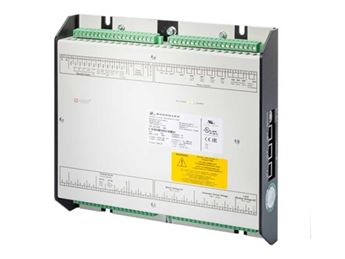

EASYGEN GC-3400XT Multi-master Genset Group Controller

The GC-3400XT is based on a scalable multi-master control concept to combine up to 31x easYgen-3000XT equipped gensets with one group controller in a group. The groups are scaled up to x8, i.e. a total up to 248 gensets can be managed in an application.

FEATURES & FUNCTIONALITY

Woodward’s group controller, GC-3400XT is designed to manage virtually any large scale power generation system you can imagine. It enables you to command up to 248 gensets, with complete genset management, synchronization, dead bus prioritization, load share, and load dependent start/stop capabilities, in combination with Woodward’s easYgen-3400XT/3500XT equipped genset controllers. These controllers come with stand-ardized software that is simple to configure, yet easily customizable for individual applications. Peer-to-peer communication between the controls and load share line redundancy at each level ensures single-fail-safe op-eration of your power generation control system.

The GC-3400XT is based on a scalable multi-master control concept to combine up to 31x easYgen-3000XT equipped gensets with one group controller in a group. The groups are scaled up to x8, i.e. a total up to 248 gensets can be managed in an application.

Applications:

Prime Power
Peak shaving
Emergency standby
Import-Export
Island parallel
Mains parallel

Features:
Redundant CAN-Ethernet communication between GC-3400XT and easYgen
Redundant Ethernet-Ethernet communication among GC-3400XT
Generator Group Breaker (GGB) synchronization and busbar arbitration
Mains Circuit Breaker (MCB) synchronization and soft loading / unloading
Load dependent start / stop (LDSS) for the entire fleet

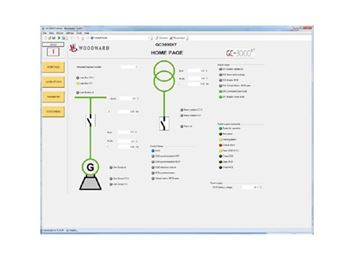

Comprehensive diagnostics, monitoring and system update function
LDSS Emulation tool
Emulate generator sequencing on a PC
Transfer the final settings directly to the GC-3400XT
UL 61010, UL 6200, CSA, and CE compliance
