The Woodward easYgen-800 series is designed for a single-generator set used in isolated stand-by or prime power applications. easYgen-800 small start/stop controller contains a big liquid crystal display (LCD), configurable I/Os and electronic engine support.
The Woodward easYgen-800 series is designed for a single-generator set used in isolated stand-by or prime power applications. The controllers include purpose-built algorithms and logic to start, stop, control, and protect the genset, and open/close circuit breakers. Equipped with state-of-the-art communication interfaces, Woodward's easYgen-800 Series of genset controllers provides exceptional versatility and value for OEM genset packagers.

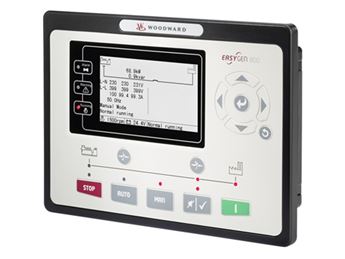

easYgen-800 advanced start/stop controller comes with a large LCD, I/O expansion capability, Ethernet and SD card connectivity.
Reduced effort through product standardization for optimized inventory, manufacturing, commissioning and service
Affordable, value-packed genset control for auto start/stop operations
Covers all the essential functionality for standby diesel genset application with monitoring, protection and event recording functions common to higher end controls
Heavy duty relays for engine, breaker, and application interface
Easy to set up and commission
Three-phase true RMS power sensing
Operation modes: AUTO, STOP, and MANUAL modes accessible through front panel, discrete inputs or via interfaces
Remote control via multiple interfaces and discrete inputs
Direct support of several ECUs such as Bosch, Cummins, John Deere, MTU, Perkins, Scania, Volvo, Woodward
Two heavy duty relay outputs for cranking and fuel solenoid
Event and data logging capabilities with real time clock
Maintenance scheduler with multipurpose flexible timers
Operating hours, start, maintenance counters and monitoring
Three switchable parameter sets of AC system winding, Rated Voltage, Rated Frequency, Rated Current, Rated Power, Rated Speed
Can be applied on pumping units as an indicating instrument (relays are inhibited)
Can be configured from computer via USB or front panel with password protection
Manual breaker operation with tactile buttons on front panel
Custom boot-up logo with adjustable screen display time
Multilingual customizable user interface
