8440-1884
EASYGEN-2500-5 Genset Kontrol & Senkronizasyon - P1

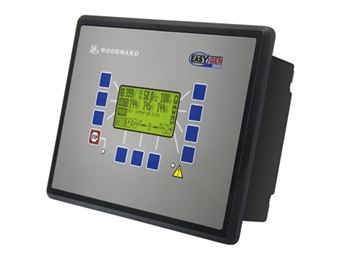

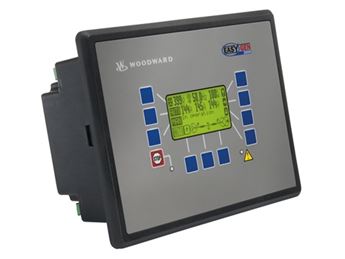

The easYgen-2000 Series is a compact, affordable genset control and protection package for load sharing up to 16 gensets in island operation, or parallel operation of a single unit with a utility.

FEATURES & FUNCTIONALITY

The easYgen-2000 Series is a compact, affordable genset control and protection package for load sharing up to 16 gensets in island operation, or parallel operation of a single unit with a utility. Its integrated load dependent start/stop programming allows you to define how gensets are brought on- and off-line to support changing load demands. It equally works with a mix of different sized engines, so you can maintain the spinning reserve you need while optimizing fuel efficiency.

The easYgen-2000 Series works with many common industrial interfaces:
CANopen for peer-to-peer load sharing
J1939 for engine ECU;
Modbus RTU for PLC, HMI, and SCADA
Modem for remote control and programming using Woodward ToolKit software

Features:
Operation modes: Auto, Stop, Manual, and Load/No Load test modes via discrete input possible
Breaker control: Slip frequency / phase matching synchronization, open-close control, breaker monitoring
Load transfer features: open / closed transition, interchange, soft loading / soft unloading, mains parallel
Remote control via interface and discrete/analog inputs for adjusting speed, frequency, voltage, power, reactive power, and power factor set points
Active power and reactive power load sharing with up to 16 units including load-dependent start/stop
Operating hours/start/maintenance counters - Operating hours also available from a connected ECU via
J1939/CAN
Supported ECU: Scania EMS/S6, Deutz EMR2, Volvo EMS2, MTU ADEC ECU7/8, Woodward EGS, MAN EDC 7, SISU EEM2/3, Cummins, Perkins and J1939 standard messages
Multi-lingual capability (11 languages in 1 unit configurable: English, German, French, Spanish, Chinese, Japanese, Italian, Portuguese, Turkish, Russian, Polish)
Event recorder (300 events, FIFO) with real time clock (battery backed; min. 5 years)
128×64 dot graphical interactive LC display with soft keys
Start/stop logic for Diesel/Gas engines
Engine pre-glow or purge control
Warm-up control via timer or coolant temperature
PC and/or front panel configurable (ToolKit software)
Multi-level password protection
Discrete I/O expansion board connectivity (Woodward IKD 1 or Phoenix Contact IL series)
