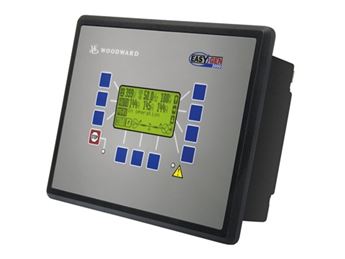

EASYGEN-2200-5 Genset Kontrol & Senkronizasyon - P1

Woodward EasYgen-2000 serisi; ada pozisyonunda 16 jeneratöre kadar senkronizasyon ile aktif ve reaktif yük paylaşımı veya bir adet şebeke ve bir adet jeneratör arasında paralel çalışması için kompakt, uygun fiyatlı bir jeneratör kontrol ve koruma paketidir.


The easYgen-2000 Series is a compact, affordable genset control and protection package for load sharing up to 16 gensets in island operation, or parallel operation of a single unit with a utility. Its integrated load dependent start/stop programming allows you to define how gensets are brought on- and off-line to support changing load demands. It equally works with a mix of different sized engines, so you can maintain the spinning reserve you need while optimizing fuel efficiency.
The easYgen-2000 Series works with many common industrial interfaces:
CANopen for peer-to-peer load sharing
J1939 for engine ECU;
Modbus RTU for PLC, HMI, and SCADA
Modem for remote control and programming using Woodward ToolKit software
Operation modes: Auto, Stop, Manual, and Load/No Load test modes via discrete input possible
Breaker control: Slip frequency / phase matching synchronization, open-close control, breaker monitoring
Load transfer features: open / closed transition, interchange, soft loading / soft unloading, mains parallel
Remote control via interface and discrete/analog inputs for adjusting speed, frequency, voltage, power, reactive power, and power factor set points
Active power and reactive power load sharing with up to 16 units including load-dependent start/stop
Operating hours/start/maintenance counters - Operating hours also available from a connected ECU via
Supported ECU: Scania EMS/S6, Deutz EMR2, Volvo EMS2, MTU ADEC ECU7/8, Woodward EGS, MAN EDC 7, SISU EEM2/3, Cummins, Perkins and J1939 standard messages
Multi-lingual capability (11 languages in 1 unit configurable: English, German, French, Spanish, Chinese, Japanese, Italian, Portuguese, Turkish, Russian, Polish)
Event recorder (300 events, FIFO) with real time clock (battery backed; min. 5 years)
128×64 dot graphical interactive LC display with soft keys
Start/stop logic for Diesel/Gas engines
Engine pre-glow or purge control
Warm-up control via timer or coolant temperature
PC and/or front panel configurable (ToolKit software)
Multi-level password protection
Discrete I/O expansion board connectivity (Woodward IKD 1 or Phoenix Contact IL series)
