8440-2255

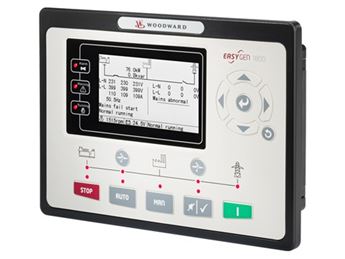

EASYGEN-1800 Automatic Mains Failure Control

The innovative features of the easYgen-1800 Series, including flexible breaker configuration and start/stop logic, real and reactive power sensing, and remote-start capability make it the intelligent ch

FEATURES & FUNCTIONALITY

The Woodward easYgen-1800 series compact AMF controller with ethernet and SD card connectivity and a large liquid crystal display (LCD), adequate I/Os and common industrial connectivity for a single-generator set used in critical stand-by or prime power applications with automatic changeover capability. The controllers include purpose-built algorithms and logic to start, stop, control, and protect the genset, open/close circuit breakers and mains supply monitoring with automatic changeover. Equipped with state-of-the-art communication interfaces, Woodward's easYgen-1000 Series of AMF genset controllers provides exceptional versatility and value for OEM genset packagers.

Features:
Three-phase true RMS power sensing
Operation modes: AUTO, STOP, and MANUAL modes accessible through front panel, discrete inputs or  via interfaces
Remote control via multiple interfaces and discrete inputs
Direct support of several ECUs, such as Bosch, Cummins, John Deere, MTU, Perkins, Scania, Volvo, Woodward
Two heavy-duty relay outputs for cranking and fuel solenoid
Event and data logging capabilities with real time clock
Maintenance scheduler with multipurpose flexible timers
Operating hours, start, maintenance counters and monitoring
Three switchable parameter sets of AC system winding, Rated Voltage, Rated Frequency, Rated Current, Rated Power, Rated Speed
Can be applied on pumping units as an indicating instrument (relays are inhibited)
Can be configured from computer via USB or from front panel with password protection
Manual breaker operation with tactile buttons on front panel
Custom boot-up logo with adjustable screen display time
Multilingual customizable user interface
